Pump Water Sustainably in Kenya with the Doyin 800W Solar Water Pump

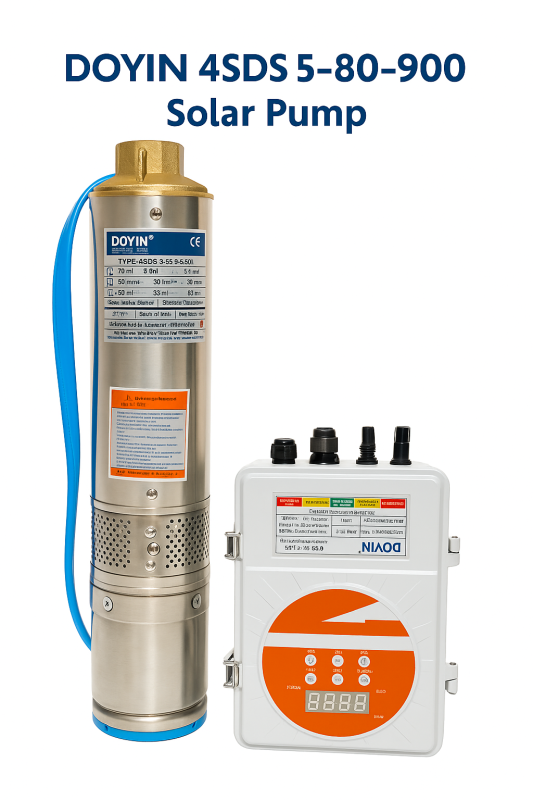

The Doyin 4SDS 5-80-90-800 is a high-performance, 800-watt solar submersible pump engineered for deep well applications and large-scale irrigation. Designed to operate efficiently on a direct DC solar array (90-160V), this  solar water pump eliminates the need for inverters, and your water bills. It's the most reliable and efficient water solution for off-grid and remote locations.

Doyin 800W Solar Water Pump 🌟 Key Features

☀️ Direct Solar Operation:Designed for 90-160V DC input, allowing it to connect directly to a solar panel array without the complexity, cost, and energy loss of an inverter.

💧 High-Pressure & High-Flow Performance

• Maximum Flow: 80 Liters per Minute - Maximum Head 80 m (≈ 262 ft) — lifts water vertically up to 80 meters. Perfect for boreholes up to ~70 m deep or delivering water to rooftop or elevated tanks at similar heights (e.g. 50-70 meters elevation).

• Multiple Flow/Head Levels:
    • ~20 L/min at ~66 m head
    • ~40 L/min at ~52 m head
    • ~60 L/min at ~34 m head
    Use this to size your tank or pipeline according to your height requirement.

🏗️ Reliable Construction:Built with a durable stainless steel for corrosion resistance and long life in submerged conditions.

🔧 Advanced Motor Technology:The efficient DC motor is designed for high torque and reliable startup, even under the load of a high head.

🔧Features Controller: The Doyin 800W Solar Water Pump offered by MK Homestyles comes with a built-in controller so you don't have to incur extra buying costs. Talk about a complete set!

Doyin 800W Solar Water Pump Technical Specifications Table

Doyin 800W Solar Water Pump Frequently Asked Questions (FAQ)

Q: How many solar panels do I need to run this pump?
A: The required number of panels depends on their individual wattage and voltage. The pump's operating voltage range is 90-160V DC. You will need to wire a solar array in a series configuration to achieve this voltage. A general starting point is an array with a total wattage of 1200W to 1600W to account for real-world conditions and ensure powerful operation throughout the day.

Q: Can this pump run on AC grid power?
A: No, not directly. This is a dedicated DC pump. To run it on AC power, you would need a compatible AC-to-DC converter or a variable frequency drive (VFD) capable of delivering 90-160V DC. Its primary and most efficient design is for solar power.

Q: What is the difference between "Head" and "Flow Rate"?
A:

• Head (in meters): This refers to the pressure or vertical height the pump can push water. An 80m head is extremely powerful, suitable for very deep wells or pushing water over long horizontal distances (10m horizontal ≈ 1m vertical head).

• Flow Rate (L/min): This is the volume of water delivered. The flow rate decreases as the head (pressure) increases, as shown in the specifications.

Q: What is the maximum depth I can install this pump?
A: As a submersible pump, it must be installed below the water level. The 80m maximum head means it can lift water from a dynamic water level (the water level when pumping) of up to 80 meters below the pump discharge point. For practical purposes, the pump itself should not be installed more than 70-75 meters below the surface to maintain performance.

Invest in reliable, solar-powered water independence. The Doyin 800W solar water pump offers the powerful performance needed for the most demanding agricultural and deep well applications.
