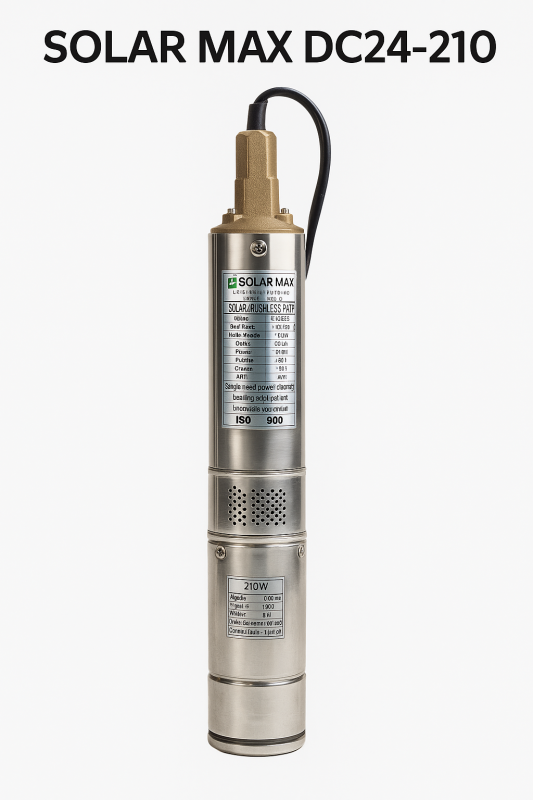

Solar Max DC24-210 Solar Brushless Submersible Water Pump – 210W, 24V, 80m Head, 1.5m³/h Flow

KES 21,500.00

Solar Max DC24-210 210W Solar Submersible Pump - Power your Water Supply Directly from the Sun The Solar Max DC24-210 Solar Brushless Pump is a durable and high-performance submersible water pump designed for deep wells, irrigation, livestock watering, and home water supply. Powered by solar...

Availability: In stock

Product details

Product Description

Solar Max DC24-210 210W Solar Submersible Pump - Power your Water Supply Directly from the Sun

The Solar Max DC24-210 Solar Brushless Pump is a durable and high-performance submersible water pump designed for deep wells, irrigation, livestock watering, and home water supply. Powered by solar energy, it combines efficiency with sustainability, making it ideal for rural, off-grid, and agricultural use.

Solar Max DC24-210 Solar Brushless Water Pump Key Features

☀️Pure Solar Operation & High Efficiency:

210W Brushless DC Motor: Provides high torque and reliability with minimal energy consumption, extending overall system life.
Simple Setup: Designed to be powered directly by a single 300W solar panel (36V Operating Voltage). That means no need for batteries, inverters, or complex controllers.
Starts Easily Under Low Light: Efficient design allows for operation even in morning and evening light conditions.

💧 Powerful & Reliable Water Delivery:80m max head, suitable for wells up to ~75–80 meters. Note, this solar water pump features ¾ Inch Outlet: Standard connection size for flexible hose attachments.

🏗️ Industrial-Grade Durability:

IP68 Certified: Fully dust-tight and submersible, built for long-term operation in harsh underwater environments.
Corrosion-Resistant Construction: Engineered for years of reliable service with minimal maintenance.
Brushless Motor Technology: Offers a longer lifespan, better efficiency, and quieter operation than brushed motors.

Technical Specifications Table:

Feature	Specification
Model	Solar Max DC24-210
Power Consumption	210 W
Operating Voltage	36V
System Voltage	24V DC
Max Flow Rate	25 L/min (1.5 m³/h)
Max Head	80 m
Outlet Size	0.75 inch (¾")
Protection Rating	IP68 (Fully Submersible)
Recommended Solar Panel	300W
Certifications	ISO 9001, CE

Frequently Asked Questions (FAQ)

Q: Does this pump require a battery or controller?
A: No. A key advantage of this pump is its simplicity. It is designed to be connected directly to a compatible solar panel (or array). It does not require a battery bank, solar charge controller, or inverter, reducing system cost and complexity.

Q: Why is a 300W panel recommended for a 210W pump?
A: Solar panels rarely output their full rated power in real-world conditions due to heat, angle of sunlight, and dust. A 300W panel ensures the pump receives sufficient voltage (36V) and power to start and run efficiently throughout the day, even during sub-optimal sunlight hours.

Q: How deep can I install this pump?
A: The pump itself must be submerged. The 80m max head means it can lift water from a dynamic water level (the water level while pumping) up to 80 meters below the discharge point. For a sustainable installation, a well depth of 70-75 meters is recommended.

Q: What is the benefit of a brushless motor?
A: Brushless motors are more efficient, more reliable, and have a significantly longer lifespan than brushed motors. They require less maintenance, generate less heat, and provide better performance, especially under the variable power conditions of a solar direct system.

Q: Can I use this pump with multiple solar panels?
A: The pump is designed for a specific voltage input (36V). You can wire multiple panels together in series to achieve this voltage (e.g., two 18V panels in series) while increasing the total wattage, which can improve performance on cloudy days.

Harness simplicity and power. The Solar Max DC24-210 offers a rugged, efficient, and hassle-free solution for sustainable water pumping anywhere the sun shines.
